Predicting Non-Standard Grains with SRM.xls

The Full Two Grain Motor

Hit Reload if you don't see motor image

Goal of this experiment is to see how the SRM.xls "ends" workaround used with the "two" (~1.5) grain motor (standard D16) will work for a full two grain motor. This motor eliminates the variable of the different grain lengths by using two full Bates grains of equal length. It focuses on the "ends# workaround."
However this motor contains an "extra end" at ignition as the full surface of the delay grain will burn one Web thickness (Tweb) deep during thrust.
After the thrust portion of the burn the remaining delay grain burns at ~1 atm giving a 5 second delay. Length/delay time is adjustable.

  • Introduction
  • Method
  • Results
  • Conclusions

  • Introduction

    The standard use of SRM.xls has the multiple grains (N) the same size/length as each other. It also has all the grain ends inhibited (Ends=0) or all ends not inhibited (Ends=1). However some of the multigrain motors have grains that differ in length. In the two cored grains (above image) one end is inhibited and the other not.
    It is hoped that the sim results of the SRM.xls thrust curve vs time can be made to correlate with static test thrust curve vs time results. This would preferably be by adjusting input rather than the more complicated approach of changing the internal calculations within SRM.xls


    The motor was constructed as per the image above. The red areas shows the non-inhibited surfaces along with the ignitor.
    The motor was then ignited on a static test stand to measure thrust. This is a spring weight scale. The static burn is videotaped and the thrust over time is plotted by analyzing each frame for thrust. The video captures 30 frames per second.
    The sim results are obtained by entering the chamber and grain data into the Excel file and solving for output.
    Once these graphs are available they are roughly compared for maximum thrust, burn time, and if the thrust curve is neutral, progressive, or regressive.
    Any obvious differences in the sim file are addressed by changing input into the SRM.xls file.
    Of course the input changes need to reflect reality so the focus is changes that reflect the non-standard construction of these grains.


    Each graph below shows the static results (in red) against the sim results (in black). In each succesive graph the sim is changed by changing the "ends" input (ends = 1, 0, and 0.5)

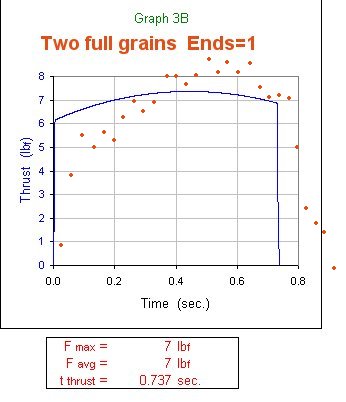

    The graph above has the sim with ends=1 so SRM calculates all ends burning. This gives an expected fairly neutral burn. The static is progressive. Not surprising since one end per grain is inhibited. (See motor image above, red areas represent unhibited surfaces at ignition.

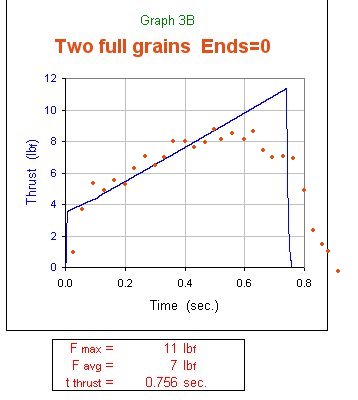

    Above is the sim with ends=0 meaning that both ends are calculated as inhibited.
    Like the "two" (1.5) grain motor (my standard D16 motor) the second half of the static burn is not as progressive as the sim.
    Again this makes sense since the static motors have one end per grain exposed.
    So once again to compensate in the sim input we enter ends=0.5
    This will calculate that one end burns and the other is inhibited.
    Now.. does the adjusted sim reflect reality?

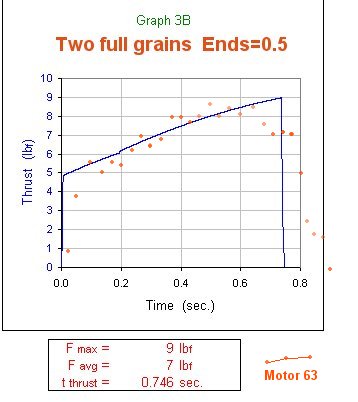

    See graph image below:


    The last sim with ends=0.5 gives a motor rating of an E31. The static data converted to newtons and entered into Engedit.exe gives a motor rating of an E26.
    So the motor diagrammed at the top of this page ends up being an E26-5
    The last sim graph does the best at predicting the actual static.
    The delay grain is not accounted for in the Sim set up. Yet it is providing a full end surface area from the start of the burn. Accounting for this extra end burning grain is beyond the scope of this project. I might try fine tuning these factors in the future (NOT :-) The current sim accuracy is sufficient for my needs.

    See the results for:
    The one grain motor
    The standard "two" grain motor
    The two grain booster motor
    The two full grain motor...That link is this page
    The three grain motor

    Another question is the reproducibility of these small motors. Too much variation in performance would make all this "fine tuning" of the sims a mute point. The one grain page listed above includes 2 static motors side by side.
    Click Here to see a preliminary comparison of four standard "two" grain motor statics.
